ZoneMaster Track Boosters Power for Your Layout

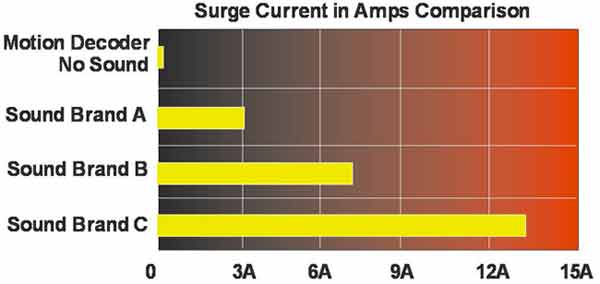

The ZoneMaster family of track boosters provide the power to drive your trains. They offer many exciting and easy to use capabilities as standard features. The ZoneMaster Single Booster and the DCPS120 matching power supply are always included with all starter systems. CVP Products' ZoneMaster Boosters provide unsurpassed power capacity suitable for the unusually high current surges of sound decoders. Single And Dual Outputs - The Single-Zone ZoneMaster has a single output delivering maximum current available. The Dual-Zone ZoneMaster has two separate and independent outputs with one having autoreverse capability. Large layouts will need a mix of single and dualzone boosters. The two types of boosters can be used at the same time. 7 Amp Continuous Current Rating - The ZoneMaster boosters provide 7 Amps of continuous output current, providing plenty of power for your layouts decoder fleet. Simple Setup - There is absolutely no programming needed since all options are selected using the convenient front panel selector switches. Universal Input - All ZoneMaster boosters offer either the standard EASYDCC control signal input or an isolated optical input suitable. The opto-isolated input is sometimes needed for some types of track detectors. Works With All Systems - The universal input also makes the ZoneMaster booster usable with many brands of foreign DCC systems. Requires DCPS120 Power Supply - This power supply provides both the continuous amperage capacity and the 30A surge current capability. It is fully protected from overload. There are 7 selectable output voltages. For detailed information, click here: DCPS120. 30 Amps Surge Current - The ZoneMaster boosters will provide up to 30 Amps of surge current capacity. It's the dirty little secret of sound decoders - when a sound decoder is first powered up, the inrush surge current can exceed 30 Amps. If your layout has lots of sound equipped locomotives, ZoneMaster boosters easily handle the surge to reliably operate these locomotives without tripping the short circuit protection. No specific sound-decoder brands are mentioned simply because they all have the same problem when compared to a regular motion-only decoder. Fully Protected - ZoneMaster's output circuitry is fully protected against short circuits, overloads and overheating. If a derailment occurs, the affected zone shuts down without affecting other zones. This is the perfect solution for both small and large layouts. If the short circuit protection is tripped, the alarm sounds and the built-in fault indicators show which zone has been tripped. Return to top

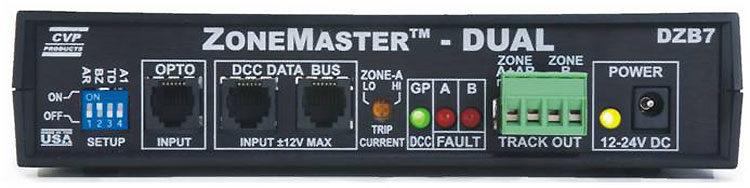

ZoneMaster Booster Descriptions Single Zone Booster: The SZB7 booster features a full 7 amps of output power. There is plenty of power to run lots of trains without any hesitation or loss of power. The SZB7 comes standard in each Basic Starter System. Dual-Zone Booster with AutoReverse: The DZB7 booster has two independent outputs. There is no need to hassle with adding 3rd party products to create two different outputs. And there is no need for special wiring, complicated setup procedures or installation instructions. One of the DZB7's outputs has autoreversing built-in.

SZB7 ZoneMaster Single Zone Booster DZB7 ZoneMaster Dual Zone Booster Number of Independent Zones     1 2 Auto Reverse     NO YES User Adjustable Trip Current     YES YES Number of Auto-reverse Zones     0 1 Maximum Continuous Current     7 amps Maximum Allowable Surge Current     30 amps Each Zone with Circuit Breaker     YES DCC Signal Indicator     YES Independent Thermal Protection     YES Reverse Polarity Protection     YES Opto Isolation     YES

Prices do not include shipping or handling. All prices subject to change without notice. Return to top
